Multi Sluice

Product Description

The world’s best concentrate cleaner

Used by prospectors and professional mining ops around the world, the Multi Sluice is a cleanup system built for one job: getting the gold out of the black sand in your concentrates. It’s not a toy. Full-scale operations use it too.

Reduction is the key

Just about anything can catch gold. The Multi Sluice is built for reduction: taking a pile of cons down to almost pure gold. In our own run, about 5 gallons of concentrates went through in two steps, about 30 minutes total, and left about 3 tablespoons of almost pure gold. No panning to speak of.

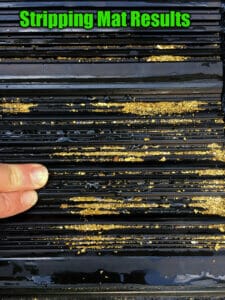

Gold caught on the Multi Sluice cleanup mat

Five ways to run it

Most people pick two steps. Choose the modes that fit your material:

  1. First pass: initial mat, full 1100 GPH, about 11° pitch, material classified to ¼”. A 5-gallon bucket runs in about 10–15 minutes and leaves about 1 cup of super cons. Most people catch about 95% of their gold by weight here.
  2. Second pass: classify the tailings to 12–20 mesh, add the GPH restrictor and the Washer Mat, and set 13° pitch. You’re left with 2–3 tablespoons of cons.
  3. Stripping mode (the “panning sucks” mode): same setup as the second pass. Spoon your cup of super cons back through slowly into a clean tub. In 2–3 minutes you’ll see pure lines of gold near the top of the mat.
  4. Super fine mode: Doc’s newest mode, using the restrictor plug, the Washer Mat and 10.5° pitch on level water. Classify to 50 mesh and feed slowly to catch gold in the 100–300 mesh range, gold almost invisible to the eye.
  5. Field mode: initial mat, a 10–12 foot hose and a 2000 GPH bilge pump. Classify to ¼–½” and run a 5-gallon bucket in about 10 minutes. A quiet, portable little recirculating machine for areas with little or no water.

Two mats included, plus an optional third

The Multi Sluice comes with two mats: the initial mat for your first pass, and the Washer Mat for cleanup. For even more stripping power, add the optional Stripper Mat for Multi.

Specs

  • Shipping weight: 19 lb
  • Includes: the initial mat, the Washer Mat and reducers

Product Specifications

Shipping Specs

19lb
Weight
